Ld-1300

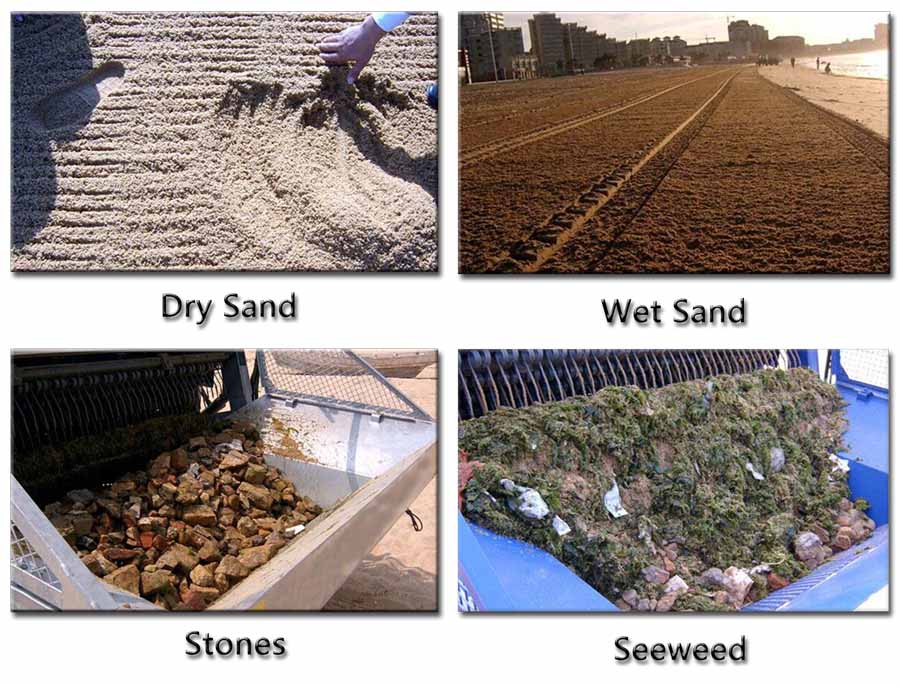

○Beach Cleaner can be used all kinds of dry or wet beach, also can remove waste like litter, other debris from the beach (Cigarette butts, glass shards, pieces of wood, beverage cans, pebbles and so on ), unwanted seaweed and other polluted things. Technology Data Model Ld-1300 Capacity screen surface +2.86 M² Operating cleaning width 1300mm Cleaning depth 0-110mm Beating rotating axles 1 Overall length 4285mm Width 2240mm Height 1470mm Size of tires (standard) 26x12.00-12 Net weight 1340kg Unloading height 1200mm Hopper capacity 1.2M³ Power take-off speed 720RPM / PTO Z6,1 3/8" Transmission Hydraulic Noise 75dB Min-max power 35-60 kw Drawbar eye Cat.1 Tension roller for the screening belt No Tractor hydraulics 2 double-acting circuits Sifting band screen 15x25/20x30/25x35mm Sifting band metal 17/21 mm Max. cleaning capacity 11700 m2/h
Working sketches of cleaning
Ld-1300
Key:
A sand cleaning machine, beach cleaner, or (colloquially) sandboni is a vehicle that drags a raking or sifting device over beach sand to remove rubbish and other foreign matter. Beach cleaning machines work by collecting sand by way of a scoop or drag mechanism and then raking or sifting anything large enough to be considered foreign matter, including sticks, stones, litter and other items. Similar applications include lake beaches,sandfields for beach volleyball and kindergaten and playing field sandpits.
○Beach Cleaner can work quickly on the beach with a tractor generally powered for 50-90-hoesepower. The spline-mounted pump enables the beach cleaner to sift all kinds of waste and offshore floater. And the waste is collected into the collecting tank controlled by hydraulic drive and then can be tipped directly onto a truck. Finally ,the machine can aerate and compress the sand.
